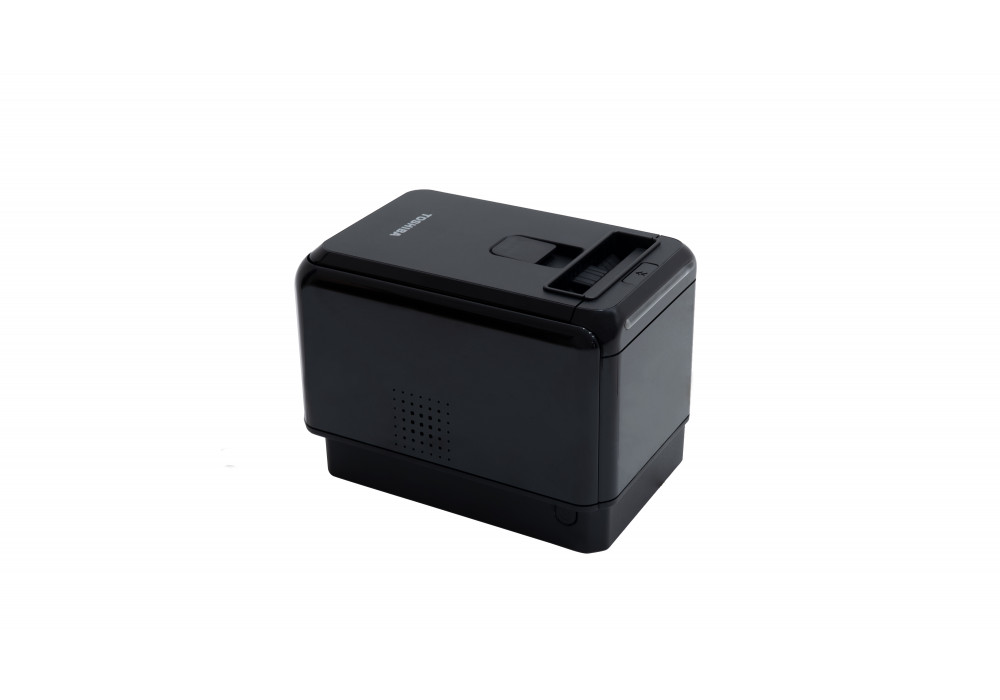

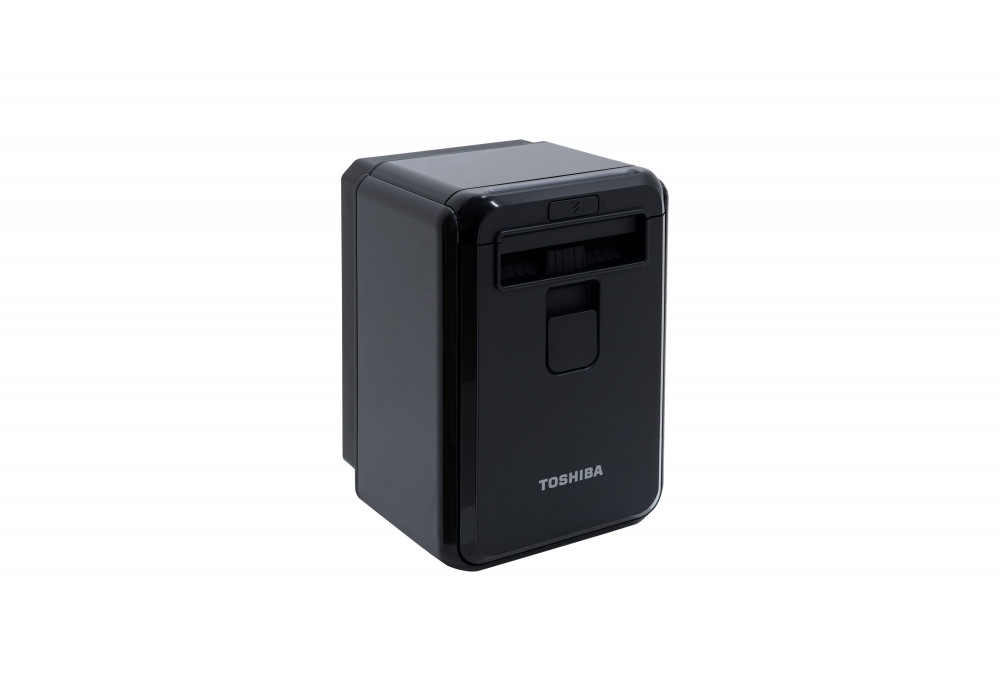

TRST-L1N

The Toshiba TRST-L1N is a compact yet powerful 3” multi-purpose printer that prints on linerless labels, POS receipt paper and traditional liner labels with ease. Whether in retail, hospitality, logistics or manufacturing the TRST-L1N delivers outstanding performance and flexibility, empowering your team to serve customers faster and smarter.

Linerless printing is more than a trend – it’s a commitment to a greener, more efficient future. By eliminating traditional liner waste, the TRST-L1N helps reduce your environmental footprint and supports your organisation’s sustainability goals. Proprietary reverse feeding technology and variable media length optimise paper usage, reducing waste and lowering printer media costs. With no liners to dispose of, you’ll also minimise workplace hazards and streamline operations, all while contributing to a cleaner planet.
  • Supports linerless, standard labels and receipt paper
  • Using linerless can save up to 30% of waste
  • The label-saving technology reduces the label length, eliminating waste and saving money

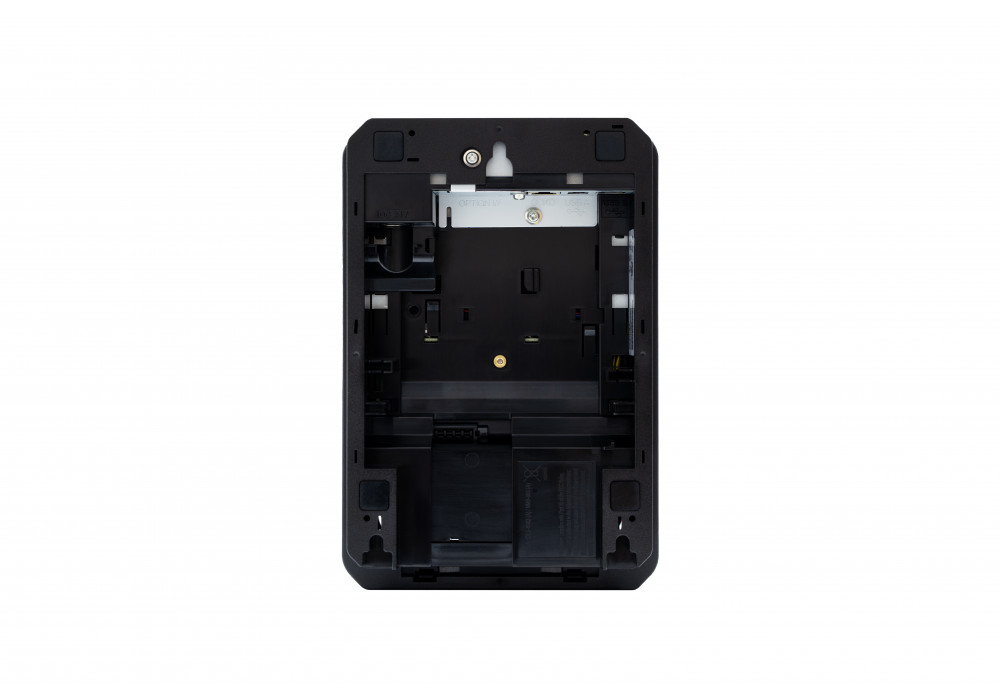

  • Operates vertically, horizontally or even wall-mounted – making the most of every space
  • Auto-adjusts label length to save media



Specifications: TRST-L1N

GENERAL

Print Method:
Direct thermal
Printhead:
Flat head
User Interface:
Status LED, feed button, power button
Dimensions (W x D x H):
140 x 208 x 149.7 mm
Weight:
2.14 kg
Operating Temperature/Humidity:
5°-40°C / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-40°-60°C / 10-90% non-condensing relative humidity (RH)
Power Supply :
External, DC 24V, 50/60 Hz

PRINT

Sensor:
Paper out sensor, paper low sensor, BM sensor, label gap sensor, paper removal sensor
Resolution:
203 dpi (8 dots/mm)
Max. Print Speed:
10 ips (254 mm/s)
Max. Print Width:
40, 58, 80 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW7, CODE 39, Code 93, ITF, MSI, Code 128, EAN 128, Industrial 2 of 5, POSTNET, RM4SCC, KIX-code, GS1 DataBar, USPS Intelligent mail, Customer Barcode
2D Codes:
Data Matrix, PDF417, MaxiCode, QR Code, Micro QR Code, Micro PDF417, CP Code, AZTEC Code, GS1 QR Code, GS1 Data Matrix
Fonts:
CP437 (DOS USA), CP850 (DOS Latin 1), CP852 (DOS Latin 2), CP857 (DOS Turkish), CP858 (DOS Latin 1 + Euro), CP860 (DOS Portuguese), CP863 (DOS French Canadian), CP865 (DOS Nordic), CP866 (DOS Russian), CP1251 (Windows Cyrillic), CP1252 (Windows Latin 1), CP1253 (Windows Greek), CP1254 (Windows Latin-5 Turkish), CP1256 (Windows Arabic), CP1257 (Windows Baltic).

MEDIA

Alignment:
Centred
Backing Paper Width :
40, 58, 80 mm
Label Thickness:
0.056-0.7 mm
Inner Media Core Diameter:
25.4 mm
Outer Media Core Diameter:
max. 101.6 mm
Media Format:
Roll

SOFTWARE & CONNECTIVITY

Printer Drivers:
Windows 11/10, Windows Server 2022/2019, Linux
Interface:
USB 2.0 HS (Type-B), USB 2.0 HS (Type-A), RJ12 for 2x cash drawers, LAN10/100 BaseT*, RS232*
Language mode :
ESC/POS

OPTIONS

LAN interface, RS232 interface, External power supply, Power Y-cable
